PosiTector UTG Ultrasonic Wall Thickness Meter



Part#: UTG Series
Supplier: DeFelsko
Calibration Certificate: is available at extra cost
Photo Gallery - click any photo to enlarge

The PosiTector UTG measures the wall thickness of materials such as steel, plastic and more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes or any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

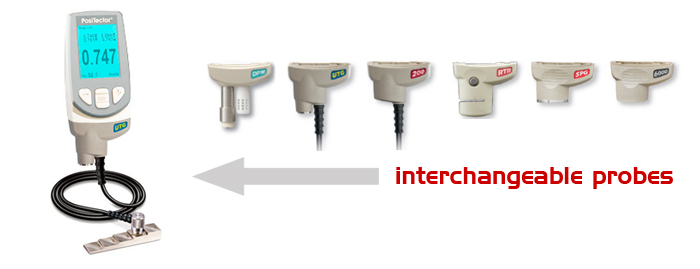

positector_utg_interchangeable_probes.jpgPosiTector body accepts all PosiTector 6000 , PosiTector 200 , DPM, PosiTector UTG , RTR and PosiTector SPG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage or wall thickness gage.

Features

  • Large, easy-to-read, graphics LCD;
  • Enhanced one-handed menu navigation;
  • Pre-programmed velocities - simply select from a list of common materials or enter your own with ease;
  • Smart Couple™ - eliminates inadvertent decoupling- ideal for analyzing large areas using multiple passes;
  • Flashing display - ideal for noisy environment;
  • RESET feature instantly restores factory settings
  • Solvent, acid, oil, water and dust resistant – weatherproof;
  • Impact resistant lens;
  • Wear-resistant probe tip;
  • Shock-absorbing, protective rubber holster with belt clip;
  • Two (2) year warranty on body and probe;
  • Precision ultrasonic transducers provide fast, accurate readings;
  • Certificate of Calibration (Long Form) showing traceability to NIST included;
  • Conforms to national and international standards including ASTM E797;
  • Built-in temperature compensation ensures measurement accuracy;
  • Min Scan - measurement rate of up to 20 readings per second with onscreen min and max for quick inspection over a large area
  • Statistics - continually displays/updates average, standard deviation, min/max thickness and number of thickness readings
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • Every stored measurement is date and time stamped
    USB port for fast, simple connection to a PC and to supply continuous power. USB cable included

STANDARD BODY

ADVANCED BODY

buy_positector.jpg DeFelsko positector standard body
- Monochrome display
with transflective technology enhances viewability in direct sunlight

- Storage of 250 readings
in one group

– stored readings can be viewed or downloaded

buy_positector.jpg DeFelsko positector advanced body - Hi Contrast reversible color LCD
- A-Scan with adjustable Gain and screen capture for further analysis and documentation
- B-Scan displays a cross sectional profile of the test material
- Storage of 100,000 readings in up to 1,000 batches and sub-batches
- Store thickness, profile and environmental measurements in individual batches
- Add notes, change batch names, and more with the new built‐in QWERTY keyboard
- WiFi technology wirelessly synchronizes with PosiTector.net, downloads software updates, and connects to mobile devices for expanded functionality

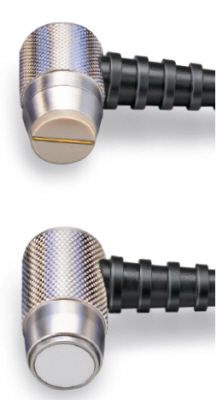

UTG C - Corroision Probe

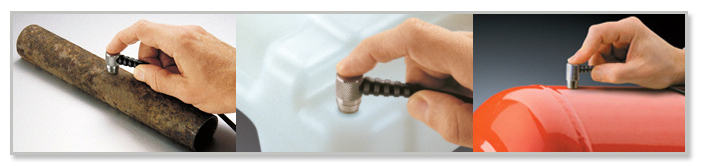

Measures the wall thickness of materials such as steel, plastic and more. Ideal for measuring the effects of corrosion or erosion on tanks, pipes, or any structure where access is limited to one side

  • 5 MHz dual element transducer with wear resistant PEEK probe tip
  • Resolution: 0.001" (0.01 mm)
  • Accuracy: ±0.001" (±0.03 mm)
  • Measurement Range*
    - Single Echo: 0.040" to 5.000" (1.00 to 125.00 mm)
  • Automatic V-Path compensation for thin materials



UTG M - Multiple-Echo Probe

Features Thru‐Paint capability to quickly and accurately measure the metal thickness of a painted structure without having to remove the coating. The most accurate method to measure the remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense. Also ideal for measuring on sandblasted materials or other applications requiring a durable wear face.

  • 5MHz contact probe with wear resistant Alumina probe tip
  • Resolution: 0.001" (0.01 mm)
  • Accuracy: ±0.001" (±0.03 mm)
  • Measurement Range*
    - Single Echo: 0.100" to 5.000" (2.50 to 125.00 mm)
    - Multiple Echo 0.100" to 2.500" (2.50 to 60.00 mm)
  • Multiple Echo technique averages 3 or more echoes for accurate and reliable readings
  • Most accurate method to measure remaining wall thickness of a painted structure because it automatically disregards the coating, lowering inspection time and expense.
  • Toggle easily between..
    • Multiple Echo mode to eliminate coating thickness, and...
    • Single Echo mode to detect pits and flaws, and to increase the measurement range


Software and analyzing data

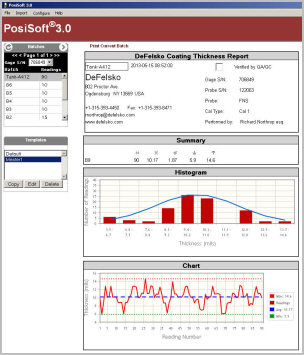

positector utg softwareDesktop software for downloading, viewing, printing and storing measurement data from DeFelsko inspection instruments. No internet connection required.

PosiSoft 3.0 Destop Software offers customizable reporting tools which allows you to add pictures and screen captures, notes and annotations, add or remove sections (drag and drop), change headings, and more. Save your custom layouts as templates for future use.

    Powerful features
  • PosiSoft USB Drive
    Stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required
  • PosiSoft.net account
    A free web-based application offering secure storage of thickness readings
  • PosiSoft 3.0 - desktop software (PC/Mac)
    For downloading, viewing, printing and storing measurement data. Available as a free download.
  • PosiSoft Mobile
    Access readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computer. (Advanced models only)
  • Screen Capture
    Record and save image into USB flash memory for record keeping and review
  • Software updates
    Keep your gage current via web
 positector-utg-software1.jpg positector-utg-software2.jpg positector-utg-software3.jpg
Template design
- drag-and-drop interface makes generating custom layouts and printed reports to meet specific requirements.
- users can easily select Template Design toolbox items to be placed, resized and edited.
Comma-Separated Text Files
- Data can easily be imported into supporting applications such as OpenOffice Calc (on a Mac) or Excel, OpenOffice or any other compatible applications.
(with or without PosiSoft)
PosiSoft Mobile
-browse stored measurement data;
- update batch names/notes using your mobile device's keyboard;
- insert images directly into gage batches using your mobile device's camera;
- remotely view the live display of a working PosiTector;
- email measurement data as PDF reports or .CSV


How to order

buy defelsko positector utg

ALL GAGES COME COMPLETE with body and probe, couplant, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, PosiTector.net account, two (2) year warranty.

  • SIZE: 146 x 61 x 28 (5.75” x 2.4” x 1.1”)
  • WEIGHT: 140 g (4.9 oz.) without batteries

Need to have this new DeFelsko UTG Series PosiTector UTG Ultrasonic Wall Thickness Meter calibrated? While this gauge has passed a quality control check, having a calibration certificate for thickness meters might be required by your quality control system. Digital Measurement Metrology (owner of ProcessInstruments.ca) is a canadian metrology company with more than 25 years of experience. Our Brampton, Ontario based calibration lab has one of the most comprehensive ISO 17025 accredited calibration scope in Canada.

Do you have an old DeFelsko gauge to be calibrated? We might be able to calibrate DeFelsko thickness meters (DeFelsko UTG Series or a different model) and provide an ISO, NIST traceable calibration certificate. Please contact our metrology lab for more info.

Ordering info

SKUDescription Included Body Included ProbeIn Stock
UTG C1Corrosion PosiTector UTG Standard UTG C 0
UTG C3Corrosion PosiTector UTG Advanced UTG C 0
UTG M1Multiple Echo PosiTector UTG Standard UTG M 0
UTG M3Multiple Echo PosiTector UTG Advanced UTG M 0
