MTP 2020 is designed for very low air velocity measurements. It features a slim probe, ideal for grilles and diffusers.
Features
Especially designed for very low air velocity measurements
Combination of hot wire and standard thermistor for temperature measurements
Multi-functions for air flow measurements
Microprocessor circuit, assures maximum possible accuracy
Measures the air velocity in m/s, km/h, ft/min, MPH, Knots
Super large LCD with dual function meter’s display, read the air velocity & temp. at the same time.
Records max/min readings with recall & data hold
Data Hold function
Used the durable, long-lasting components, including a strong, light weight ABS-plastic housing case.

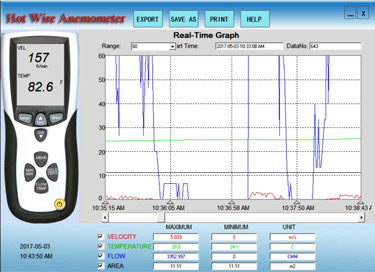

Dedicated software to analyze air flow, air velocity or temperature measurements
Expand the functionality of MTP 2020 Hot wire Anemometer to tabulate or graph the real time measurements and connect the MTP 2020 to computer via USB Cable.
Using the dedicated software, the display information will be showed remotely in real time on the PC. All real time measurements are time stamped and may be shown graphically versus time.
The real-time graphs for Air Velocity, Temperature, Air Flow or Area are individually controlled from a simple check box interface and show the max/min values with unit.
Tabular results can be exported to Excel usually used to create queries or print reports.
Specifications
Air velocity Measurements:
Range
Resolution
Accuracy
m/s
0.1 ~ 25.0m/s
0.01m/s
± (5%+1d) reading
Or
± (1%+1d) full scale
km/h
0.3 ~ 90.0km/h
0.1km/h
ft/min
20 ~ 4925/min
1ft/min
MPH
0.2 ~ 55.8 MPH
0.1MPH
knots
0.2 ~ 48.5knots
0.1knots
Temperature Measurements:
Range
Resolution
Accuracy
0 °C to 50 °C (32 °F to 122 °F)
0.1 °C /0.1 °F
± 1 °C /1.8 °F
Air Flow Measurements
It calculates the volume of airflow and shows the results
in CFM / CMM units
Display
46.7mm × 60 mm larger LCD display.
Probe length
Extendable to 41’’ (104cm)
Memory
Maximum and Minimum with recall
Sampling interval
Approx. 0.8 sec
Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)
Operating Humidity
Less than 80% RH
Power Supply
9V battery
Weight
280 g
Dimension
210mm × 75mm × 50mm
Applications
Environmental testing, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case, Paint spray booths.
What's Included
MTP-2020 Hot Wire Anemometer with Air Flow Measurements
Telescopic hot-wire probe
CD software and driver
USB cable
AC adapter
Solid carrying case
User manual
9V battery
Need to have this new MTP MTP-2020 Hot Wire Anemometer with Air Flow Measurements calibrated? While this gauge has passed a quality control check, having a calibration certificate for digital anemometers might be required by your quality control system. Digital Measurement Metrology (owner of ProcessInstruments.ca) is a canadian metrology company with more than 25 years of experience. Our Brampton, Ontario based calibration lab has one of the most comprehensive ISO 17025 accredited calibration scope in Canada.
Do you have an old MTP gauge to be calibrated? We might be able to calibrate MTP digital anemometers (MTP MTP-2020 or a different model) and provide an ISO, NIST traceable calibration certificate. Please contact our metrology lab for more info.
